200 Series – Dual Screen Setup

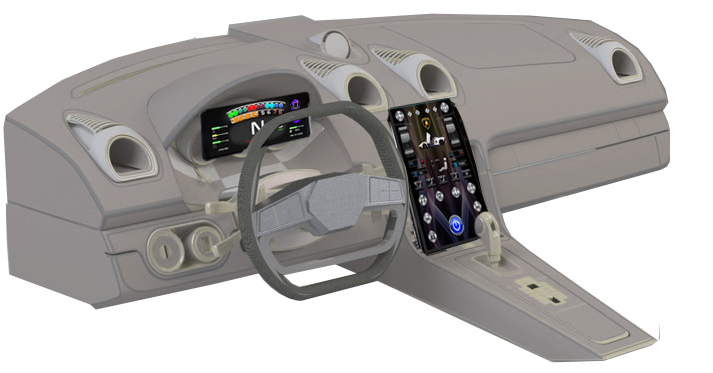

**System shown with optional 12 inch touch-screen
$1,800 USD + shipping
Available Graphic Skins
Expand gallery to view graphics
200 Series Features
- 1920 x 720 Resolution, IPS, 11.0 Inch LCD (10.25 inch x 4.4 inch) for the Dash Screen
- 1024 x 600 Resolution, IPS, 7 x 4 Inch, capacitive touchscreen
- Speedometer, tachometer, voltmeter, engine temp., fuel level, oil or fuel pressure
- Optional oil pressure, fuel pressure, boost, oil temp., transmission temp. gauges
- Odometer, Trip A, Trip B
- Door open indicator (2 Door default)
- Digital turn signals, high-beam indicators
- Date & time
- Audio & Video media player (w/ line out audio)
- USB linked, phone mirroring (Bluetooth not available)
- On-screen shift indicator
- Warning icons & messages
- Standard graphic skin
Connect to any Tach source:
- Hardwired – for carb/TPI, non-computer engines
- PCM/ECU – for computer controlled engines
- CAN Bus / OBD2 – for modern model years
The LCDi-200 digital dash is a standalone unit for monitoring engine functions, controlling mechanical and cabin features. This product is capable of connecting various engines to customized vehicle projects seamlessly.

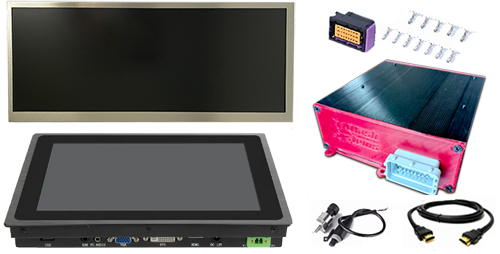

Comprised of a cluster LCD display screen, a remote touchscreen display and an interface module, the LCDi-200 system is able to handle an array of digital/analog inputs and outputs. Update any vehicle interior with state of the art graphic interfaces that can be personalized to be one of a kind.
Our Screens are sunlight readable and display in high-definition, with quick-acting displays for important functions such as tachometer readouts.
Standard functions include speedometer, tachometer, voltage, fuel level, temperature, odometer, pressure gauge, and trip counters.
The LCDi-200 system is also compatible with Vintage Air/Restomod climate control systems and AccuAir e-Level suspension systems.
Functions
- CAN bus / OBD2 ready
- Digital and Analog inputs
- Bluetooth META display (phones w/dual audio)
- Bluetooth Media Control (phones w/dual audio)
- Touch-screen, relay control
- Stereo media & Bluetooth audio out (line level)
